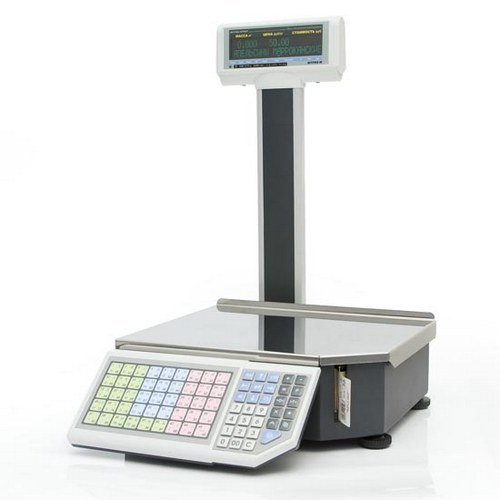

Scales printing labels Shtrih-Print M

Shtrih-Print M — functional trading printing scales with a maximum weighing limit of 15 kg. They are used to weigh and determine the value of the goods by its weight and price, followed by printing a label with a bar code and various text and graphic information.

 On the high rack is an informative vacuum-fluorescent display for the seller and the buyer. The display of the scales has two lines, on which various information is displayed: mass, price per kg, calculated cost, name of the selected product, and various service information.

The built-in memory provides storage of information about the goods and additional text messages. A large 78-key functional keyboard is located at the bottom of the scale. 45 programmable shortcut keys allow you to recall up to 90 products from memory.

Features and functions of the scales

• Memory for 22000 products.

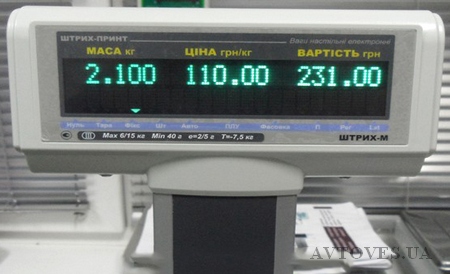

• Two-sided vacuum-luminescent display for 2 lines of 22 characters (weight, price, cost, product name, information on the selected mode and the state of the scales).

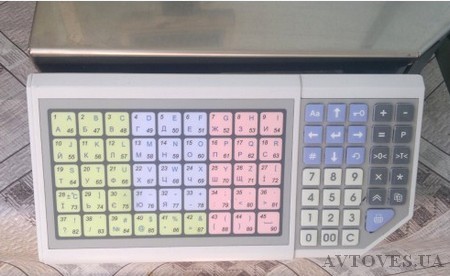

• Keyboard — 78 keys (45 customizable shortcut keys).
• Convenient programming interface PLU with visual navigation.
• The scale parameters are easily configurable and presented as a menu with a hierarchical structure.
• Built-in and custom label formats.
• Printing of graphic images and linear bar code.
• The package includes powerful software for working with a computer.
• The interfaces are RS232 and Ethernet.
• Controlling weights from the computer.
• Managing broadcast commands over a network.
• The ability to connect a barcode scanner through the RS-232 port.
• The print speed is 100 mm per second.
• The width of the print is 54 mm.
• The width of the thermal label roll is 58 mm.
• The maximum diameter of the roll is 120 mm.
